Product Description

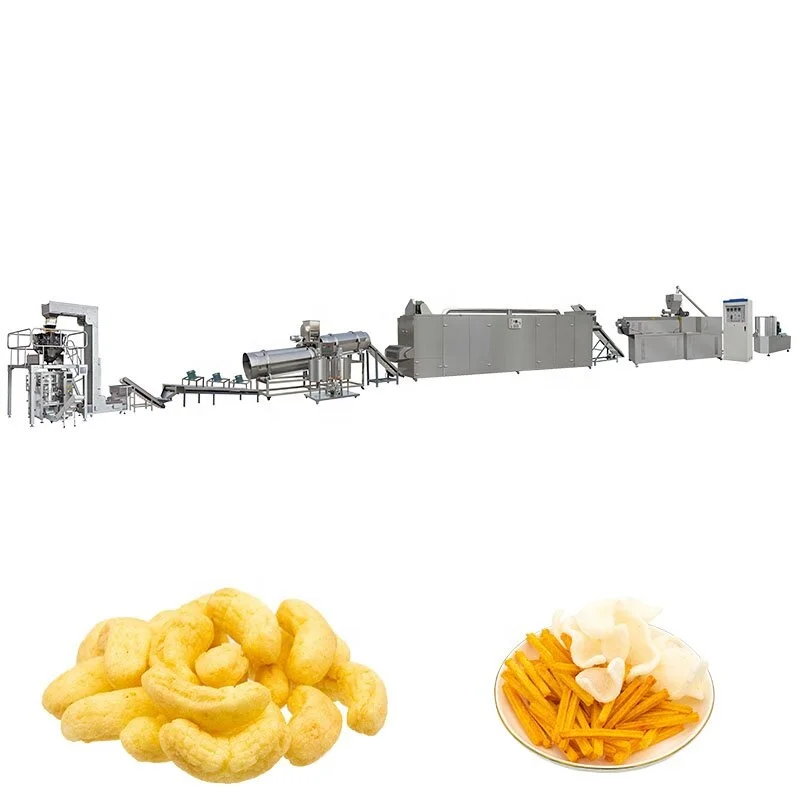

This production line is a new type of puffed food equipment independently developed by our company on the basis of absorbing advanced technology of similar equipment from abroad. The technical performance and product quality of the production line have reached the advanced level. The production line includes all the processes of batching. extrusion. puffing. forming. sandwiching. cutting. spraying to the finished product. and realizes the automation of production. The production line has the advantages of multiple types of equipment. flexible equipment configuration. wide range of raw materials. multiple product types. and simple operation. The production line can produce sandwich cakes. puffed rice crackers. wheat roast. nutritious breakfast and other products by adjusting the abrasive tools and production process. This production line is suitable for all kinds of food manufacturers.
This production line includes powder mixer. screw conveyor. twin-screw extruder. sandwich machine. shaping machine. elevator. oven. seasoning machine. cooler. etc.
This production line includes powder mixer. screw conveyor. twin-screw extruder. sandwich machine. shaping machine. elevator. oven. seasoning machine. cooler. etc.
The investment for this line is only one tenth of that lager size equipment. especially suitable to small-sized or self owned enterprise.
All the machinery is made of stainless steel. Using the advanced technology for nutrient and instant foodstuff complete lines. the plant is innovative with advanced structure. excellent performance and reliable quality that provide an ideal choice for the investor in foodstuff industry.
These main equipments are introduced as follows:
Model | Installed Power | Power Consumption | Output | Size |
MT65 | 84KW | 59KW | 120-150kg/h | 21000*1200*2200mm |
MT70 | 132KW | 92KW | 200-250kg/h | 23000*1500*2200mm |
MT85 | 239KW | 167KW | 300-400kg/h | 28000*3500*4300mm |
MT75 | 186KW | 140KW | 400-500kg/h | 24000*1500*2800mm |
MT95 | 260KW | 180KW | 500-1000kg/h | 31000*3500*4300mm |
Powder Mixer
Output: 300-600kg/hr
Rotary speed: 385rpm
Mixing time: 10min per time
Tank volume:150kg
Power: 4kw
Dimension:
1000 x 630 x 1100mm
Rotary speed: 385rpm
Mixing time: 10min per time
Tank volume:150kg
Power: 4kw
Dimension:
1000 x 630 x 1100mm

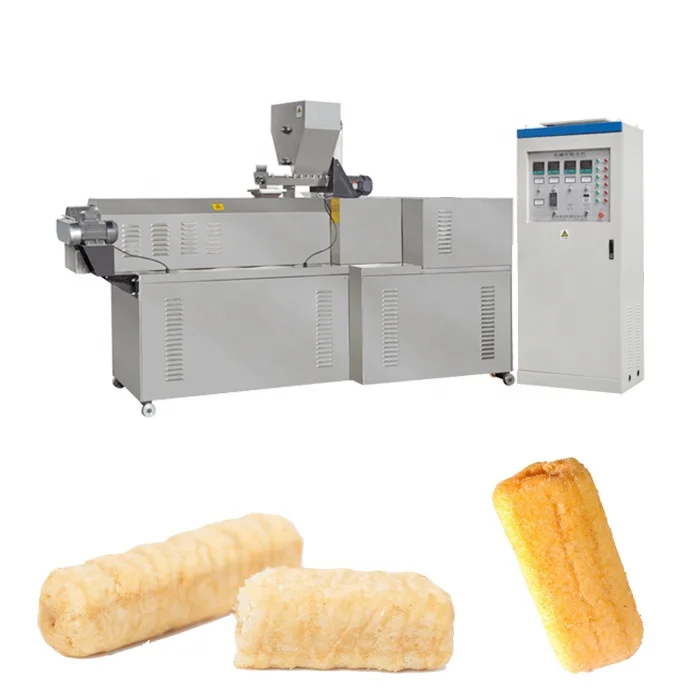

Double Screw Extruder
Output: 200-250kg/hr
Installed power: 45.87kw
Actual power: 30-35kw
Main motor power: 30kw
Dimension:
2800 x 830 x 1875mm
Installed power: 45.87kw
Actual power: 30-35kw
Main motor power: 30kw
Dimension:
2800 x 830 x 1875mm

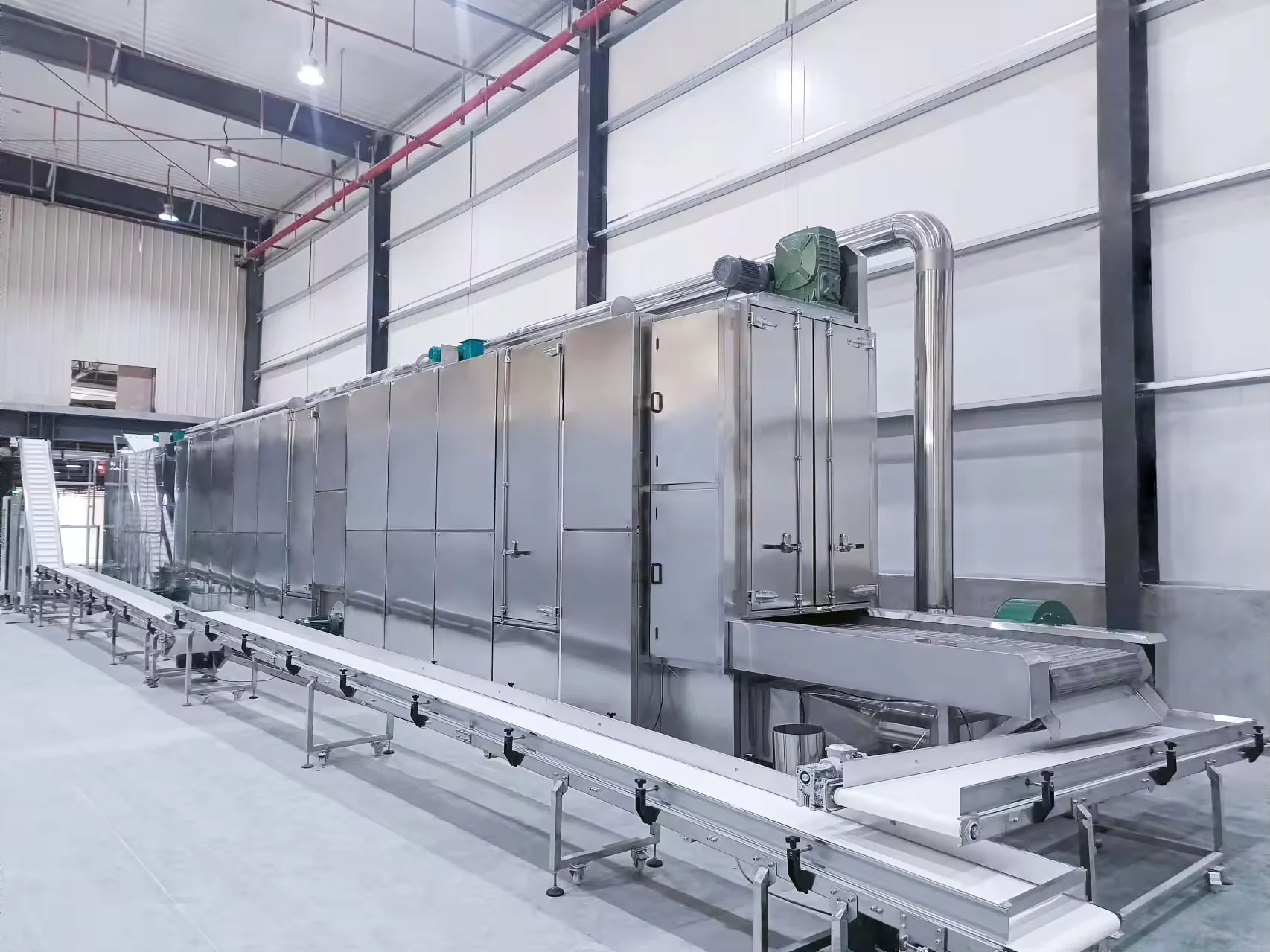

High-temperature Roaster
Output: 300-400kg/hr
Effective length of belt: 3.5m
Belt motor power: 0.55kw
Far infrared heater power:
3.9kw x 24
Gas consumption: 6.8m3
Dimension:
4500 x 1500 x 1600mm
Effective length of belt: 3.5m
Belt motor power: 0.55kw
Far infrared heater power:
3.9kw x 24
Gas consumption: 6.8m3
Dimension:
4500 x 1500 x 1600mm
Screw Conveyer
Power: 0.75kw
Output: the capapcity can change according to extruder machine
Dimension:
2500 x 500 x 2000mm
Output: the capapcity can change according to extruder machine
Dimension:
2500 x 500 x 2000mm
Company information
Jinan Meiteng Machinery & Equipment Co.. Ltd. is located in Jinan. the capital of Shandong Province. The company is an enterprise specializing in double-screw and single-screw food puffing machinery. The company is mainly engaged in research and development. production and sales of various puffing machinery and complete sets of equipment. Our company has a team of experts who have worked in the industry for more than ten years. We strive to continuously explore extrusion technology research and food technology to help customers produce popular foods.
Customer
Feedback
Certifications
Packing & Delivery
About packing fully automatic pet food machine making/pet dog food making machine??
We can pack according to customer requirements.
Our Services
1. Pre-sale services: Act as a good adviser and assistant of clients. enable them to get rich and generous returns on their investments.
(1)Select equipment model;
(2)According to the special requirements of customers. free project planning and design services are provided;
(3)Train technical personnel for clients.
2. Services during the sale: Respect clients. devote ourselves to improving the total value of clients.
(1)Pre-check and accept products ahead of delivery;
(2)Help clients to draft solving plans.
3.After-sale services: Provide considerate services to maximize customers’ benefits.
(1)Assist clients to prepare for the first construction scheme;
(2)Install and debug the equipment;
(3)Train the first-line operators;
(4)Examine the equipment;
(5)Take initiative to eliminate the troubles rapidly;
(6)Provide manuals for installation. operation and maintenance
(7)Provide equipment CAD drawings;
(8)Provide technical exchanging.
(9)1 year complete warranty.
(1)Select equipment model;
(2)According to the special requirements of customers. free project planning and design services are provided;
(3)Train technical personnel for clients.
2. Services during the sale: Respect clients. devote ourselves to improving the total value of clients.
(1)Pre-check and accept products ahead of delivery;
(2)Help clients to draft solving plans.
3.After-sale services: Provide considerate services to maximize customers’ benefits.
(1)Assist clients to prepare for the first construction scheme;
(2)Install and debug the equipment;
(3)Train the first-line operators;
(4)Examine the equipment;
(5)Take initiative to eliminate the troubles rapidly;
(6)Provide manuals for installation. operation and maintenance
(7)Provide equipment CAD drawings;
(8)Provide technical exchanging.
(9)1 year complete warranty.
FAQ
1. Are you a manufaturer or a trading company?
We are a professional manufaturer with trading department.
2. Could we visit your company to check the machine?
Of course! Highly appreciated your visit to our company.
3. How about your noodle machine quality?
All main parts of the machine are made of 304 stainless steel. We will be responsible for site installation and commissioning. Ifthere is anything wrong with the machine. our engineers can be on site to repair it within two days. Even if the machine doesn't break down. We also pay a return visit twice a year by video phone.
Our payment terms is 30% T/T as down payment. 70% by irrevocable L/C at sight before delivering.
5. What’s your Guarantee?
We provide 1 year complete Guarantee and life-time maintenance service.
6. How about the installation?
We will dispatch our engineers to your factory to guide you installation and commissioning work and training your operator.
7. Why Choose us as a reliable Processing line supplier?
(1) Advantage technology; (2) High quality material; (3) Tight quality control; (4) Accurate maching; (5) 7 – 24 hours service
