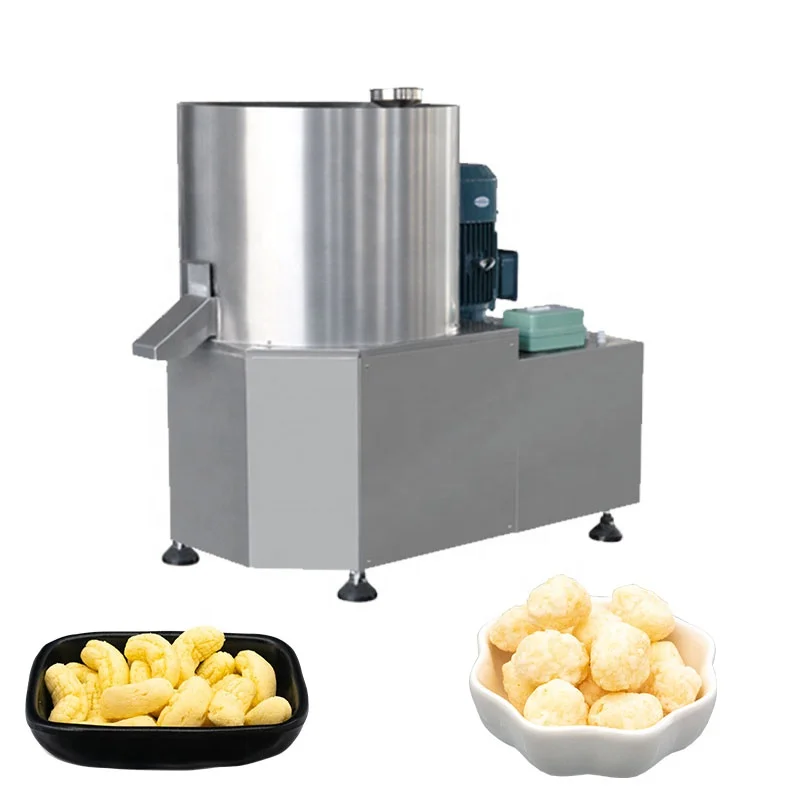

Twin screw corn puffs extruder machine small corn snack food extruder machine
Product Description
Twin screw corn puffs extruder machine small corn snack food extruder machine can take corn. rice. wheat. oat. rye and other grains as materials to produce extruded snacks. with crispy taste and lively shape. Inflating food machine is designed according to market demand.We can get different shapes: round.triangle. square. stars. flower. etc.

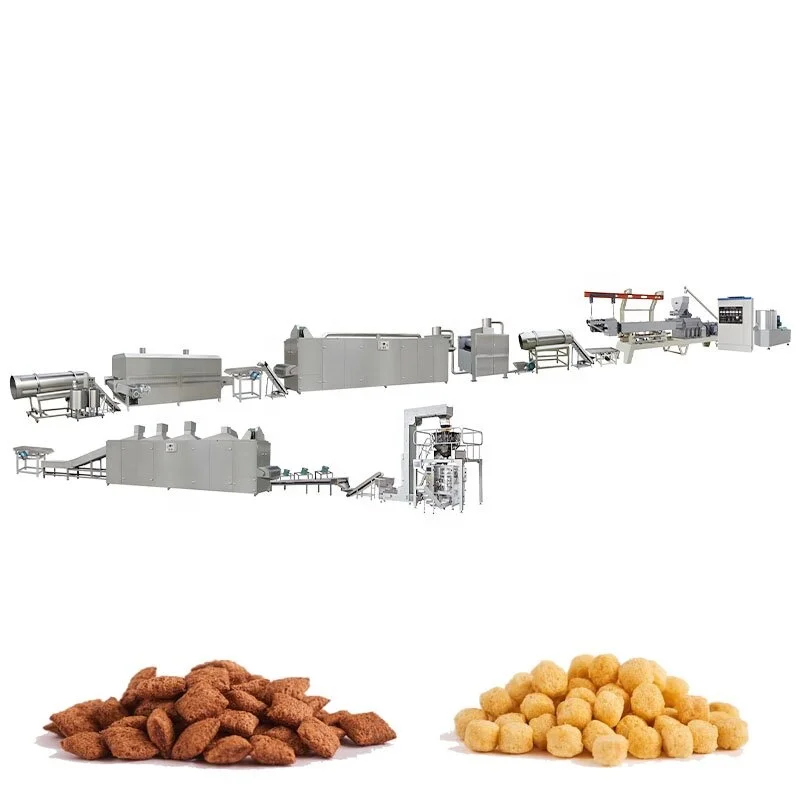

Twin screw corn puffs extruder machine small corn snack food extruder machine from feeding. extruding. shaping .cutting.oil spraying to finished products are done once time automatically.
Visible auto-temperature controlling system. make the temperature-controlling to be more direct-viewing. parameter to be more precise.
1. The screw is made of alloy (38CrMoAL) by nitriding process. high strength and wear-resting. And it has good self-cleaning ability and does not need to discharge or clean the barrel and screw. when roasting or replacing of materials.
2. Radiator is increased on driving part for forced cooling effect. and it ensures extruder operate safely
3. SIEMENS(China) Motor
4. It adopts speed adjusted converter on feeding system. extrusion system and cutting system. Food grade stainless steel twin screw feeding machine guarantees stable materials feeding in the whole food process.
5. Adopted the Delta inverters. ensure the extruder better running.
6. The gearbox has automatic lubrication function. with extends gear life.
7. Cutting knife fixed in the die head seat. rotary cutting by V-belt drive.
2. Radiator is increased on driving part for forced cooling effect. and it ensures extruder operate safely
3. SIEMENS(China) Motor
4. It adopts speed adjusted converter on feeding system. extrusion system and cutting system. Food grade stainless steel twin screw feeding machine guarantees stable materials feeding in the whole food process.
5. Adopted the Delta inverters. ensure the extruder better running.
6. The gearbox has automatic lubrication function. with extends gear life.
7. Cutting knife fixed in the die head seat. rotary cutting by V-belt drive.
Model | Installed power | Real power | Output | Dimension |
MT65 | 70kw | 40kw | 100-150kg/h | 20000x1200x2200mm |
MT70 | 100kw | 70kw | 200-240kg/h | 25000x1500x2200mm |
MT85 | 200kw | 150kw | 300-400kg/h | 30000x3500x4300mm |
Our Jinan MT Machinery & Equipment ..LTD company is a manufacturer professional do the extrusion snacks food and pet food machinery .Our company has good experience of the industry development. We have well-experienced managers. outstanding engineers as well as well-trained technical workers. By constant technical exchange with well-known firms of the same line in the world and also by introduction of advanced technique and experience into our company. we have established a strong technical guarantee system. Our company has been persisting in the tenet of pursuing brilliance and the managing idea and developing with customers. In our management. it adheres to the principle of whole-hearted attitude. good credit. excellent quality and perfect service. and exerts strict quality control in production. sales and after-sales service. We base our product development and improvement on the suggestions and demands of our customers. As a professional manufacturer of inflating food machinery. we have distributed in the research and development of inflating food technology and machinery. On the basis of the first generation and second generation. the third generation inflating technology and machinery has been developed.
Our company will go all out and make innovation to contribute to the development of our national food
stuff industry together with those companies at the same line.
Our products are sold very well throughout China and are also introduced to Southeast Asia. East Europe. Africa and other regions. Our market share is increasing each year.Specification
Mixer machine:
Function: Flour Mixer is used to mix the raw material. like corn flour. rice flour with liquid and other additives.
Technical Parameters:
Capacity: 80-100kg/batch
Mixing time: 30S-3minSize: 1050×760×1200mm
Running speed: 280 r/minMotor power: 7.5kwStructure detail:
Water inside: top water insideStainless steel structure. especially the parts in contacting with the raw material orproducts;
The discharge hole adopts the new handle-opened design and sealed well;Equipped with safety device and safety switch. While the top cover or the discharge hole is open. it will shut down automatically. Cover small area. easy cleaning. and operate stably.
Scerw conveyor :
Function: Conveyor is used to the mixed materials to the Feeder hopper of the extruder.
Technical Parameters:Power(KW): 1.1Dimension(m): 2.5×0.5×2.0Structure detail:Stainless steel structure. especially the parts in contacting with the raw material or products;
It can work either horizontal or at any angle.
The materials is conveyed in a sealed stainless steel roller to the feeding hopper of extruder without leaking. dust pollution automatic controlling.
Double screw extruder machine:
Technical Parameters:
Power(KW): 30kw
Dimension(m): 3×1.1×1.9
Heating power: 14kw
Feeding power: 0.75kw
Cutting power:0.75kw
Function: Double Screw Extruder serves to gelatinize flours andstarches continuously and automatically. After dosing. the materials are worked by two co-rotating screws composed by sectional modules for the following functions: forward and backward transport. mixing. feeding of additives. injection of liquids . de-gassing. cooking and forming.
Dryer machine:
Structure detail:Stainless steel structure. especially the parts in contacting with the raw material or products;Five layer structure can prolong the drying time and reduce the coverage area;Each layer is made of mesh belt which is made by SUS;Side guards to prevent products from falling off the belt;Various speed inverter drives for five layers;Auto temperature control system with the temperature MAX 160??;The body is well sealed to prevent any heating leakage. and thus reduce the savings in energy;Three kinds of power can be choices: Electric. gas or oil.
Seasoning machine:
Drum Driving Power:1.1kw
Drum Size:φ700 x3000mm
Power:0.75kw
Flavoring System is used to spray the flavor powder and oil onto snacks evenly.Includes FOUR devices: Coating Drum. Oil Sprayer.Small Hoist and powder hopper.Stainless steel structure. especially the parts in contacting with the raw material or products;Rotary speed can be adjustable;Rotary direction can be adjustable (clockwise or anti-clockwise);The tank is equipped with heating machine for heat the oil and other liquid. The heating temperature can be adjustable;
Cooling machine:
1.Stainless steel belt 2.450MM width3.With fans for short-time coolingSize:6000X600X800MM
This machine use to cooling the product after the seasoning machine.the product surface also have the high tempreature.so use the cooling machine can quickly cooling the product and come to the packing machine.
Our twin-screw extruder is very versatile. You can change the shape of the product by changing the mold. We have made many shapes. such as flowers. stars. wheels. square boxes. hearts. smiles. rings. and strips.we can according to the customer inquirys.
Our customers
We have a lot of customer good feedback.Our machines has obtained many honors .patent .and famous certificates in our nation as our machines has obtained many honors .patent .and famous certificates in our nation as well as the world.
Our Certifications
We can provide the electronic edition certificates for Jinan MT Machinery Twin screw corn puffs extruder machine small corn snack food extruder machine if asked. or you can see the original documents in our factory. We can ensure the truth of our certificates.
Packing & Delivery
Packing of Twin screw corn puffs extruder machine small corn snack food extruder machine: Simple packing stretch film (Based on the customers' need adopt the wooden case or wooden pellets. etc.)
Transportation: According to the contract. our company could in charge for the shipment or you prepaid. We will choose the most timely and safe way transportation.
Related Products:
Exhibitions
Exhibitions of Twin screw corn puffs extruder machine small corn snack food extruder machine??
We often go to conferences all over the world. such as Egypt. Bangladesh. Indonesia. and some Southeast Asian countries. We have met many customers at the exhibition. and customers are very satisfied with our products. We will also participate in many exhibitions in China.
Our Service
Design
we can according to client's factory to design put project design
Test Machine
when client visit our factory we will test machine for customer
Installation
After we cooperate .we offer oversea serivice
1). At least 1 year from the date of completion of the commissioning.
2). Free consultation service before. during. and after sales;
3). Free project planning and design services;
4). Free debugging of equipment until everything is functional;
5). Free management of equipments long distance shipping;
6). Free training of equipment maintenance and operating personally;
7). Free new production techniques and formulas;
8). Provide 1 year complete warranty and life-time maintenance service;
